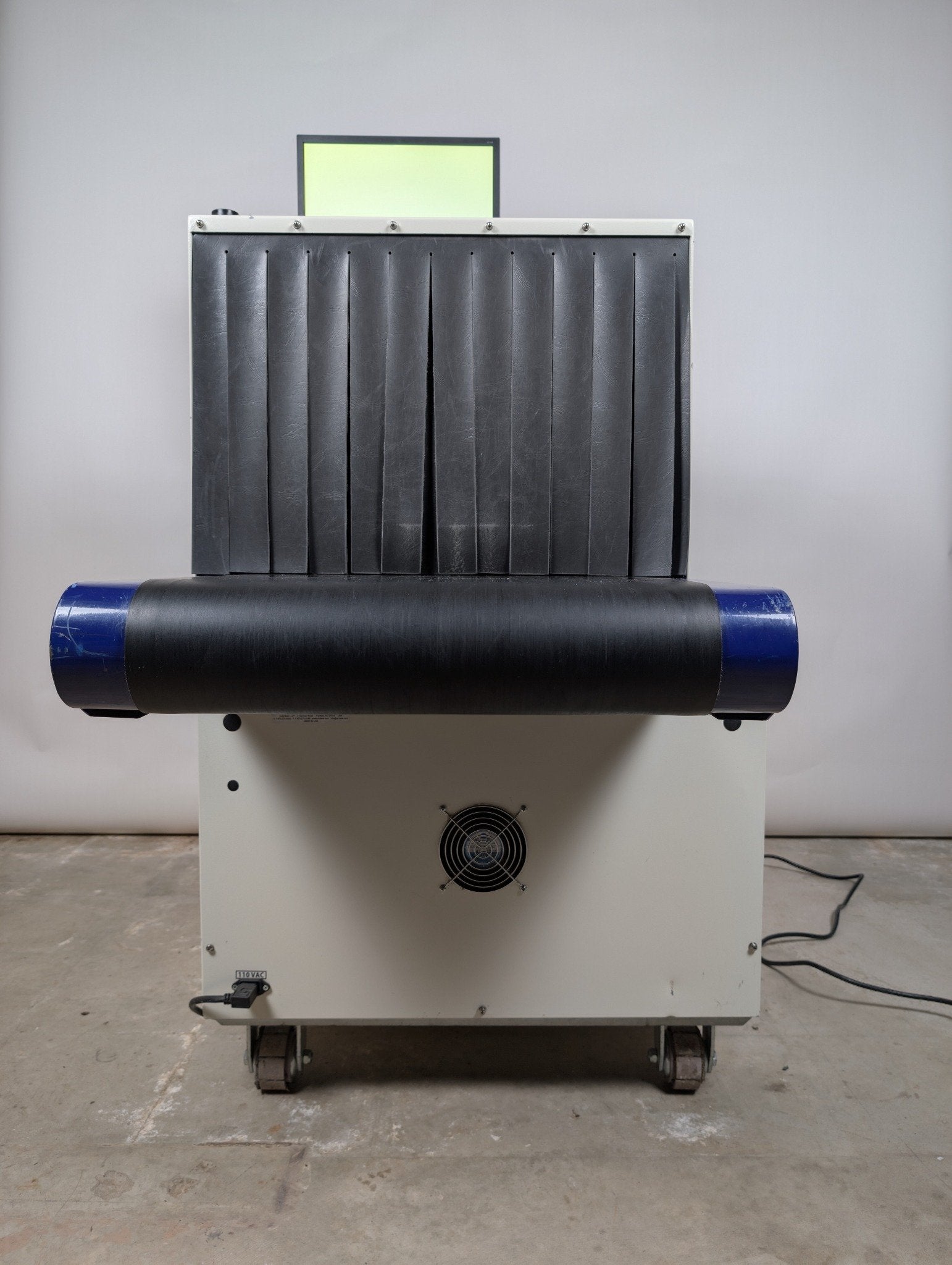

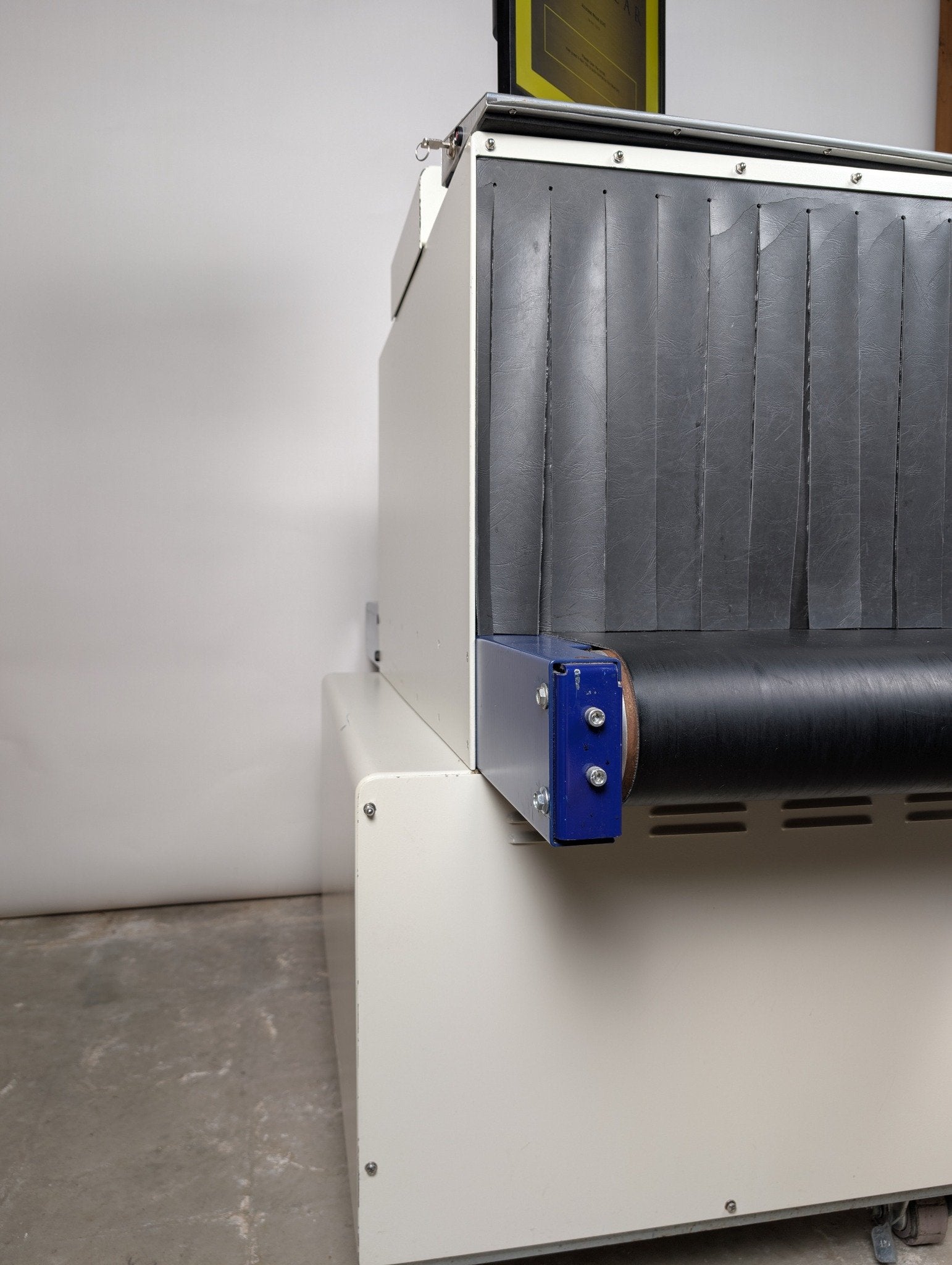

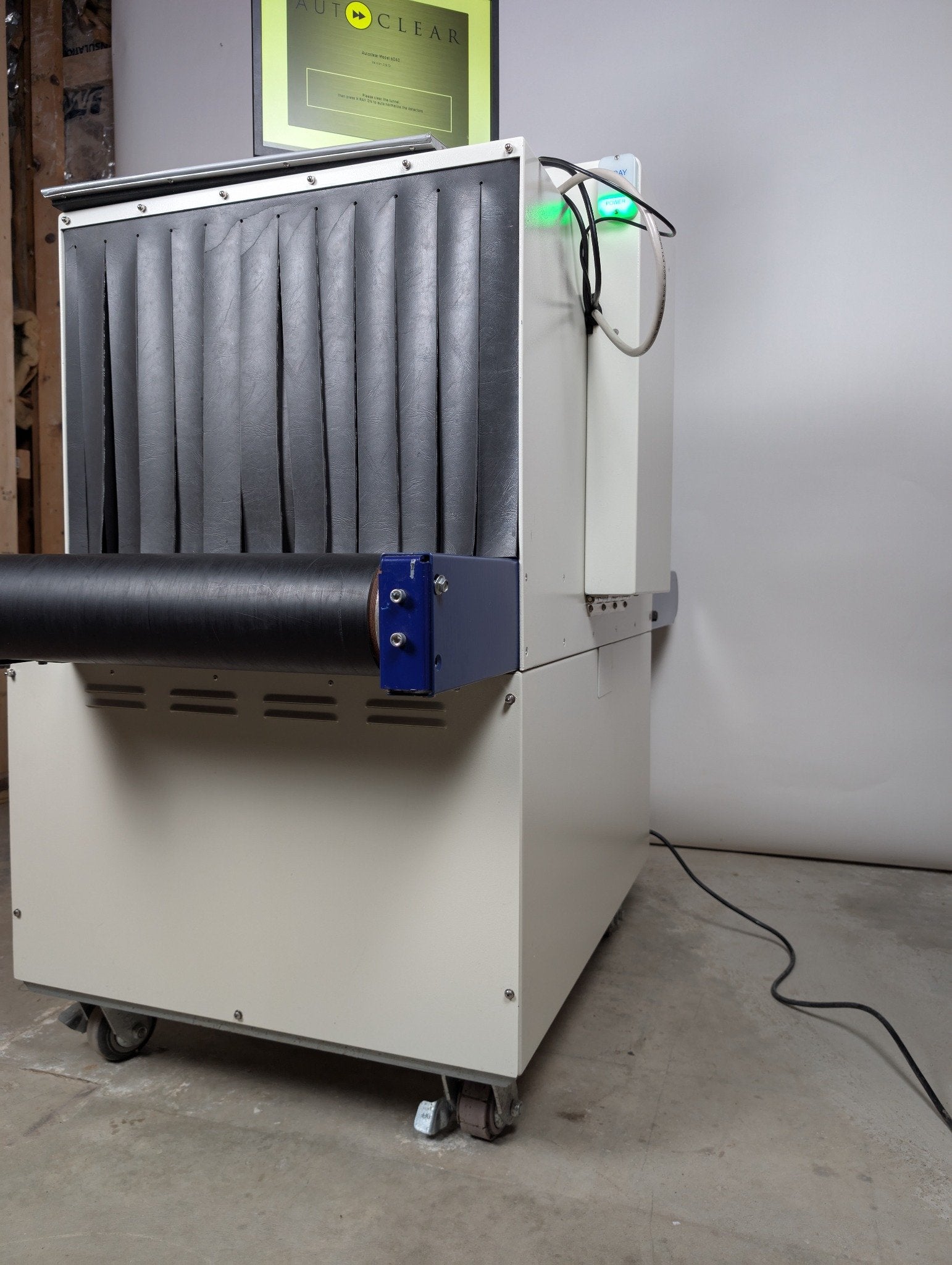

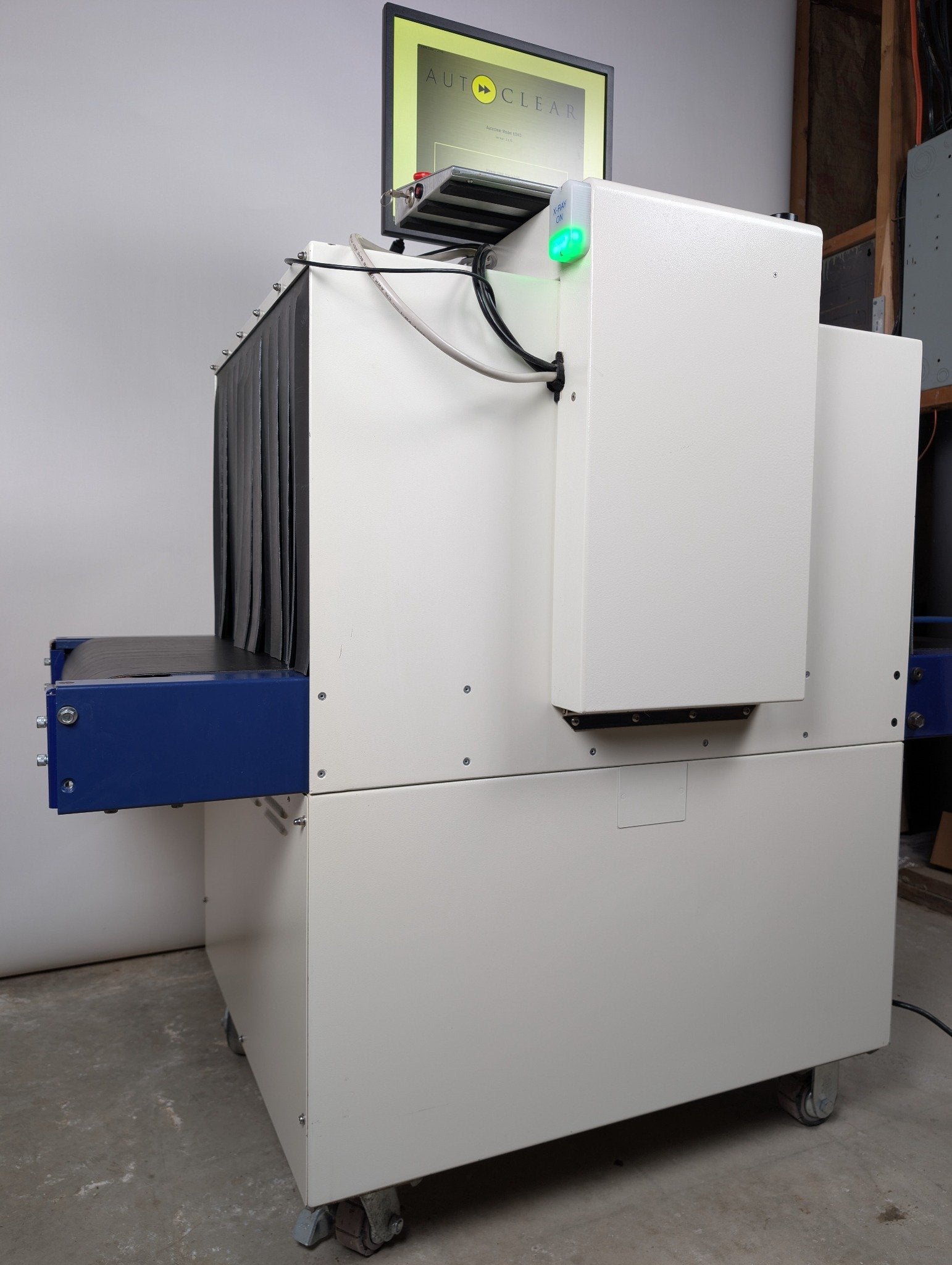

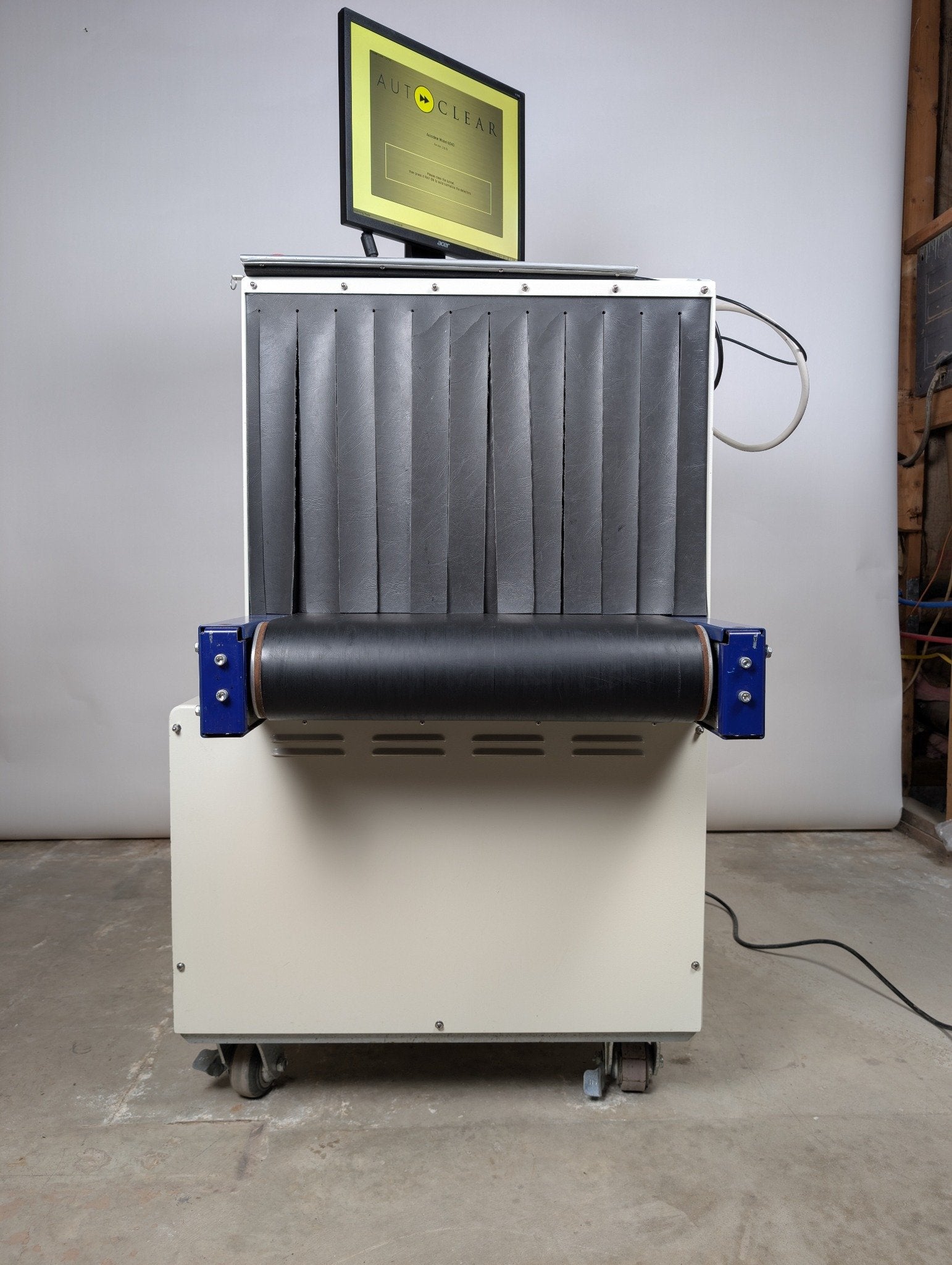

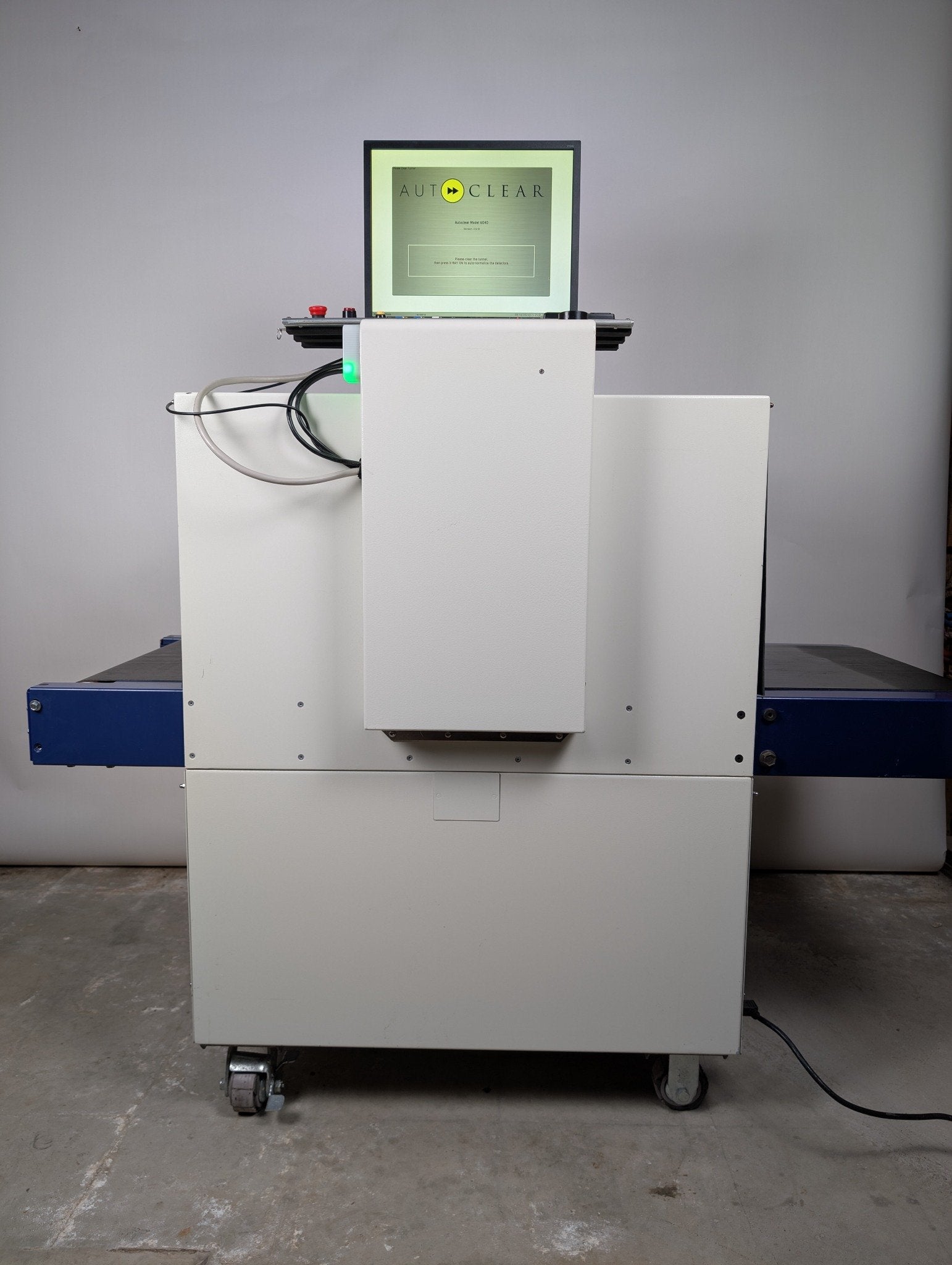

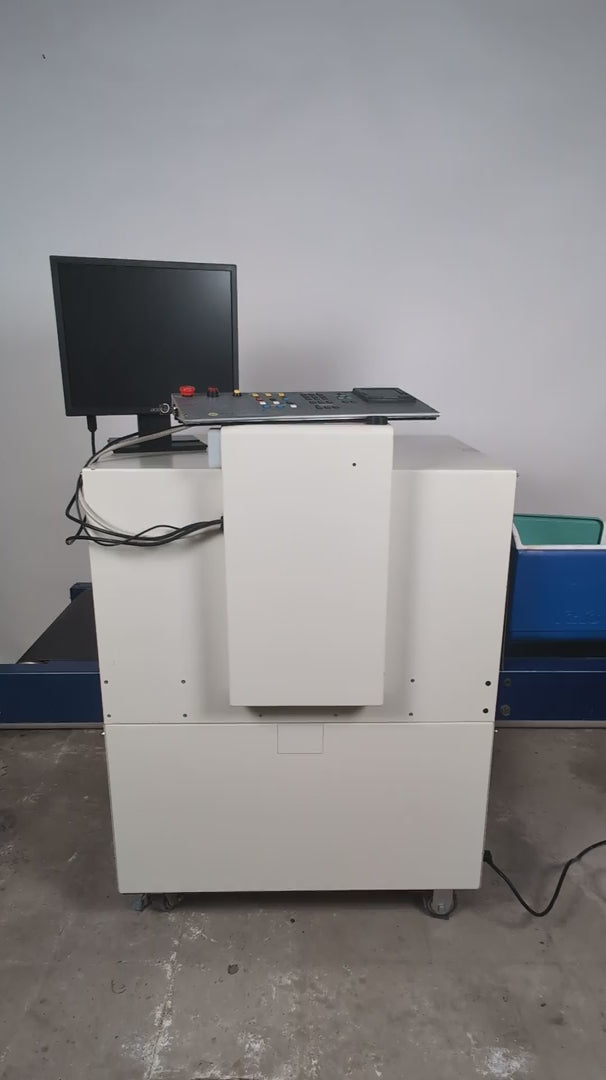

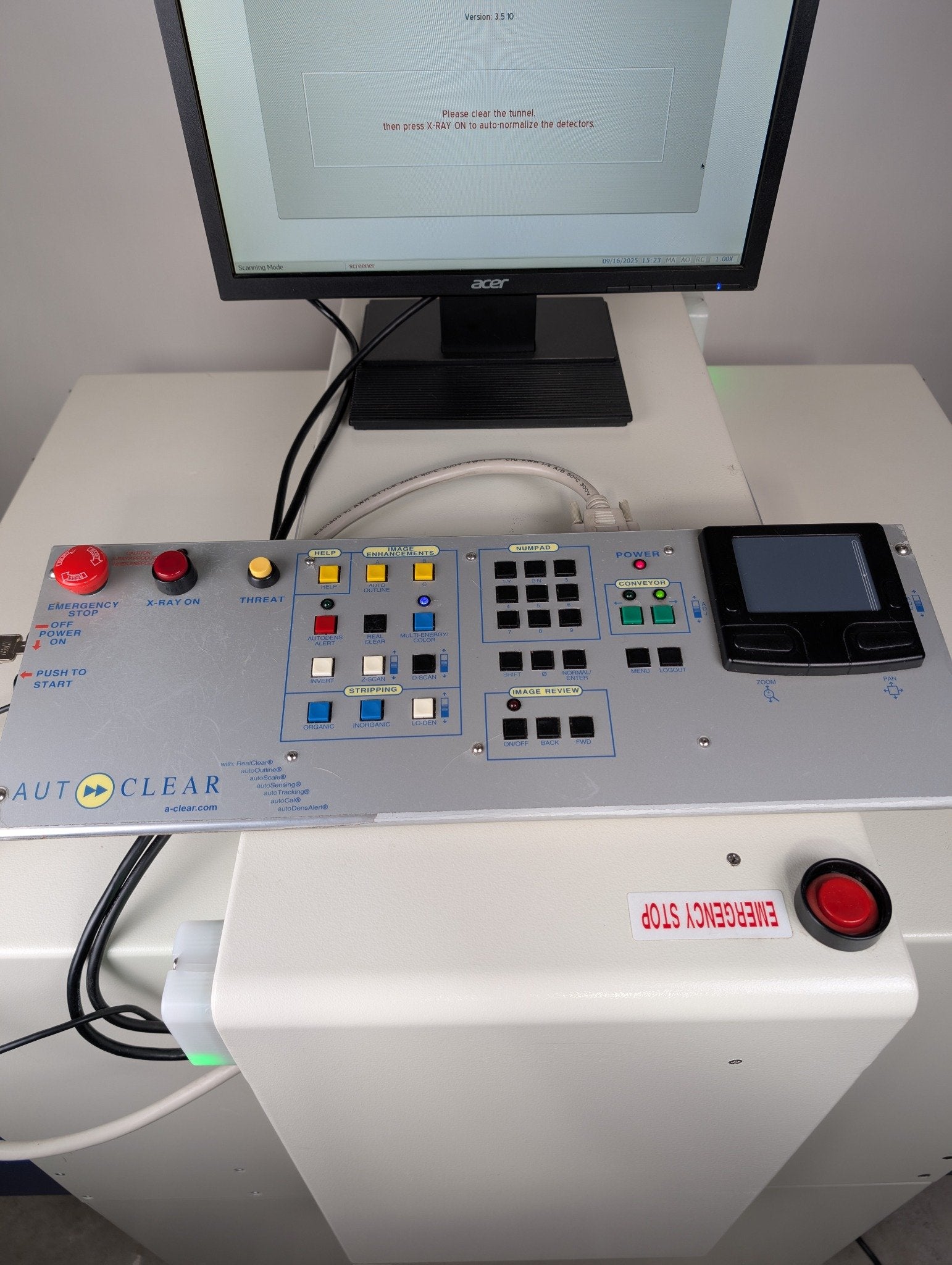

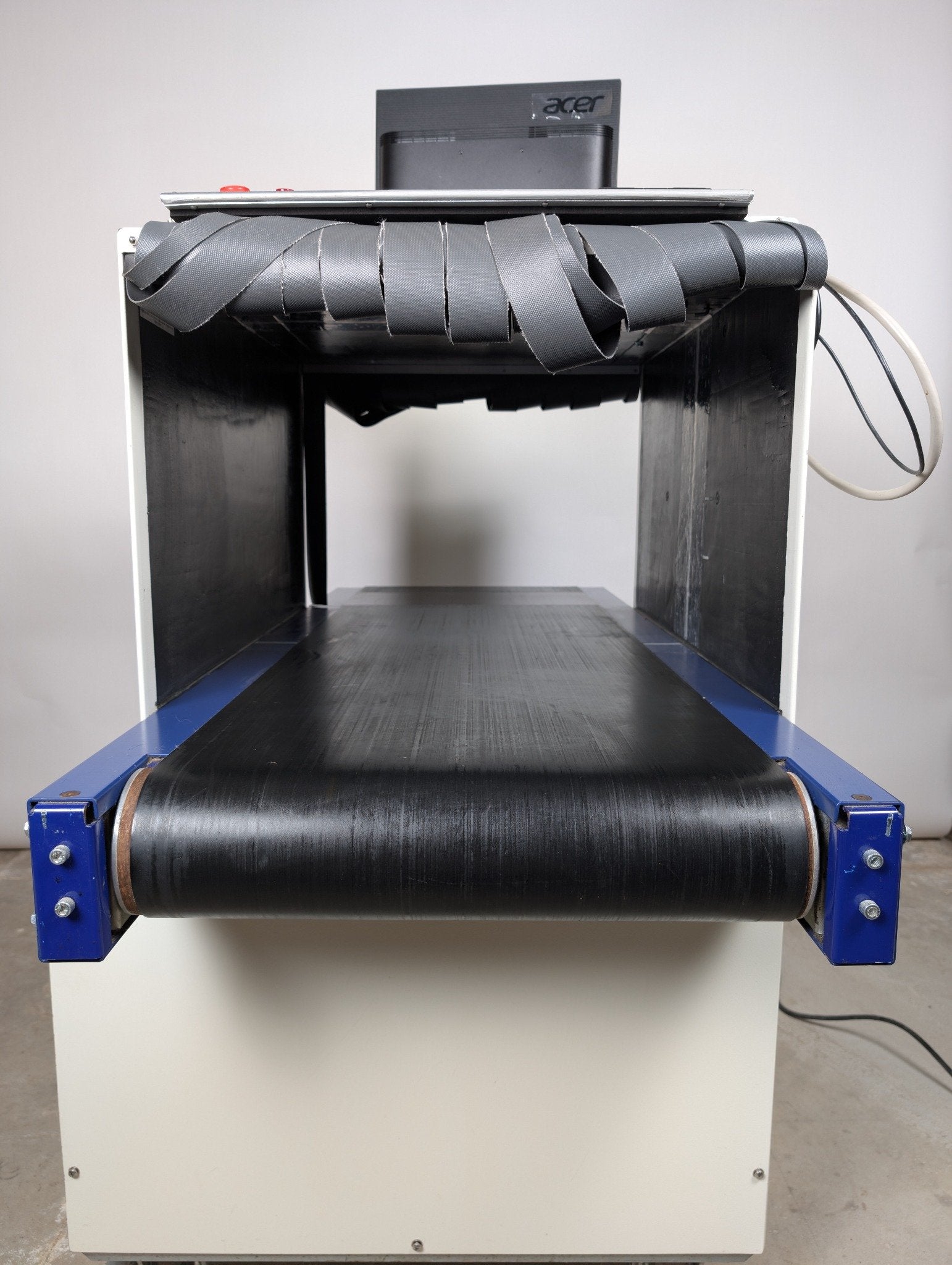

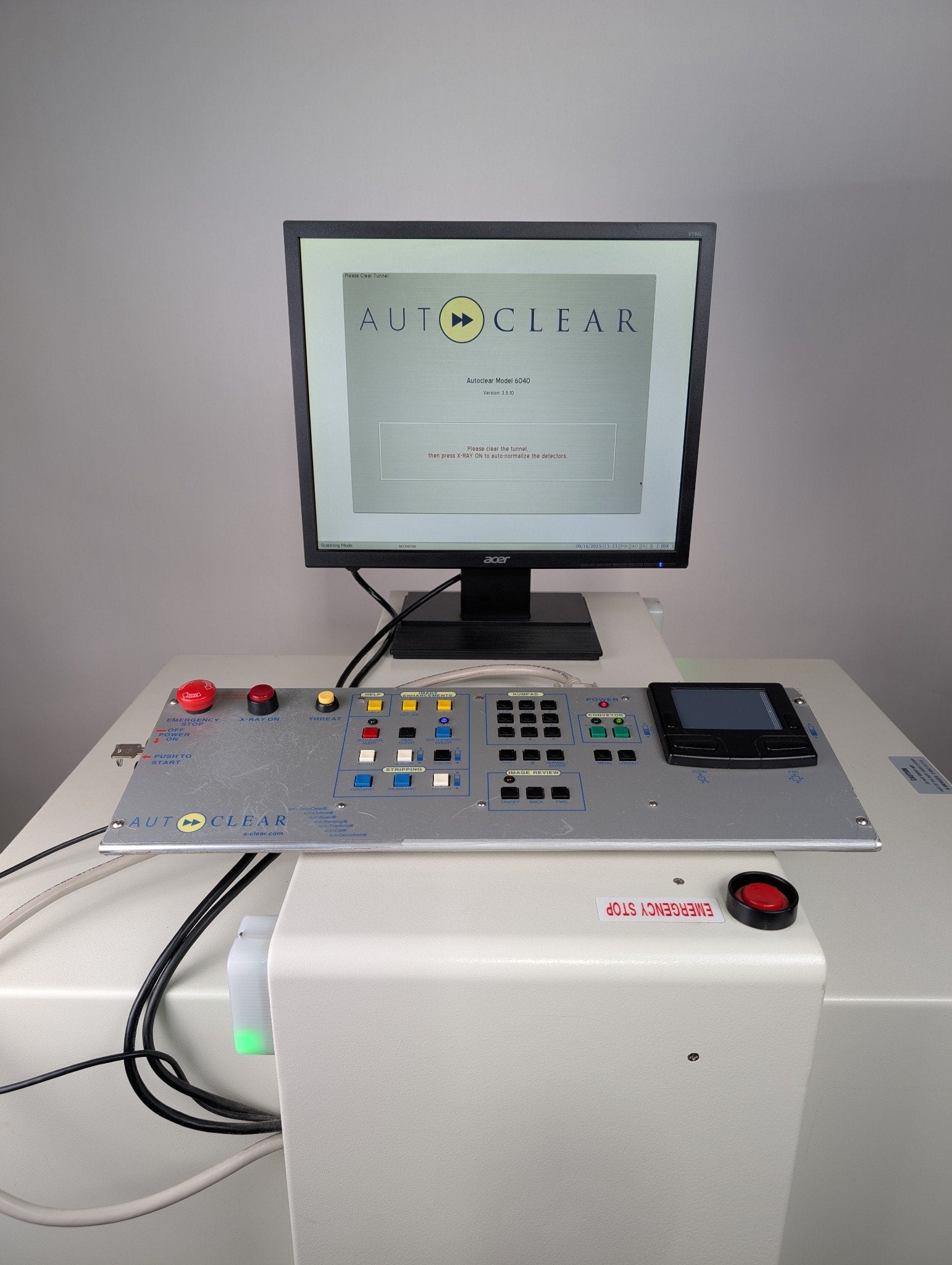

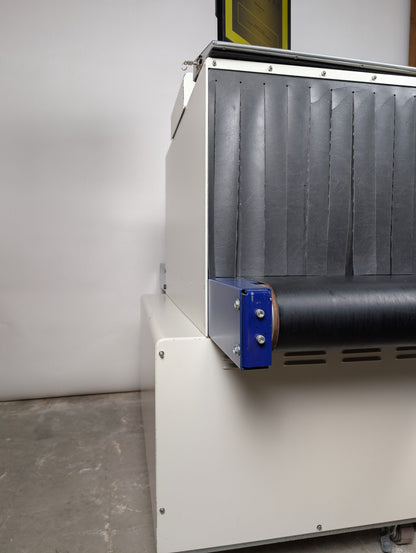

AutoClear 6040 Digital X-Ray Scanner - Conveyor Belt, Control Board & Monitor

Condition

Good

Description

Enhance security operations with the AutoClear 6040 Digital X-Ray Scanner, a sophisticated screening solution engineered for high-throughput security environments. This advanced system combines precision imaging technology with robust construction to deliver reliable threat detection in demanding security applications. Designed for installation at critical security checkpoints including airports, government facilities, and corporate headquarters, the 6040 features a high-resolution digital imaging sensor that produces exceptionally detailed scans.

Technical Specifications

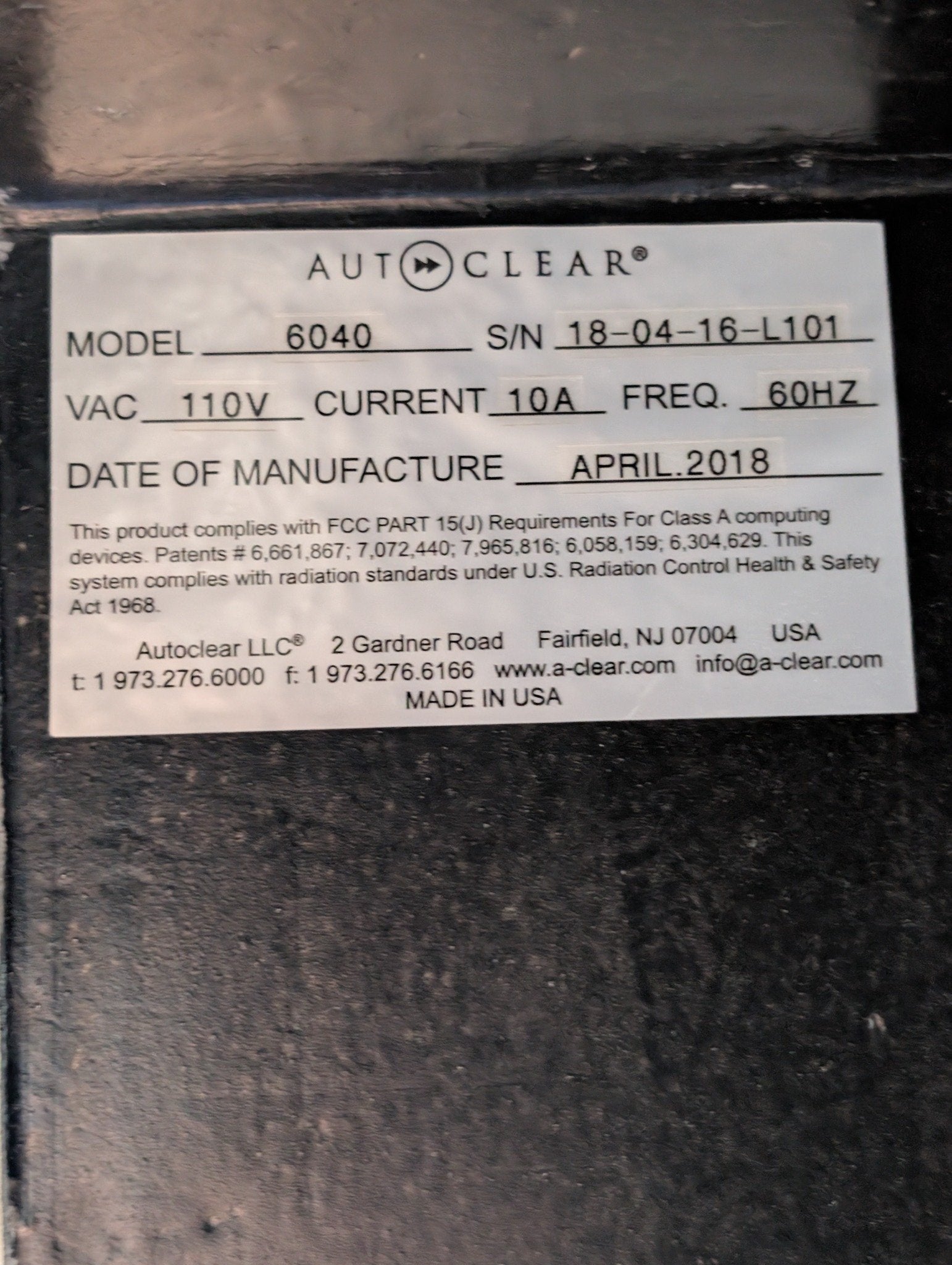

• Model: AutoClear 6040
• Part Number: 6040
• Tunnel Size: 25.2" W x 16.8" H (640 x 427 mm)
• Conveyor Height: 31.5" (800 mm) from floor
• Conveyor Speed: 0.66 ft/s (0.2 m/s)
• Conveyor Load Capacity: 352 lbs (160 kg) evenly distributed
• X-Ray Generator: 160 kV operating at 140 kV
• Beam Direction: Diagonal upward
• Detector Configuration: L-shaped array for dual view
• Wire Resolution: 38 AWG typical, 40 AWG guaranteed
• Steel Penetration: 35 mm guaranteed, 37 mm typical
• Display: Dual 21.5" high-resolution LCD monitors
• Image Processing: 24-bit real-time processing
• Storage: 250,000 image archive capacity
• Image Functions: Edge enhancement, pseudo-color, negative image
• Power Requirements: 110-240 VAC, 50/60 Hz
• Dimensions: 83.5" L x 33.7" W x 54.8" H (212 x 85.5 x 139.5 cm)
• Weight: Approximately 980 lbs (445 kg)
• Radiation Safety: Complies with all applicable international standards
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
